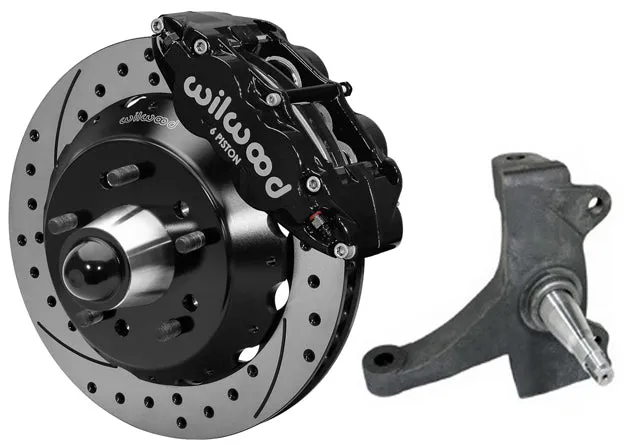

BRAND NEW WILWOOD PREMIUM BIG BRAKE SUPERLITE BOLT-ON FRONT 14" DISC BRAKE KIT (PART #140-10776-D) WITH RIDETECH 2 1/2" DROP SPINDLES (PART #11369300).

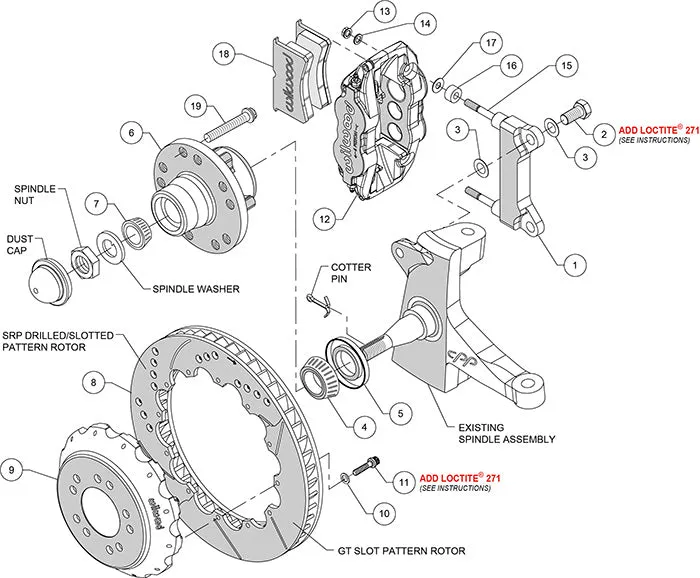

SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED WITH THIS BRAKE KIT.
FEATURES DRILLED & SLOTTED ROTORS AND POWDER-COATED BLACK CALIPERS.
FITS:
- 1973-1987 CHEVY C10, R10 AND GMC C15, C1500, R1500 2WD TRUCKS AND SUBURBANS
- 1973-1982 CHEVY BLAZERS AND GMC JIMMYS
WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.
SUPERLITE BIG BRAKE FRONT KITS PROVIDE THE ADDED ADVANTAGE OF LARGER DIAMETER BRAKE ROTORS FOR AMERICAN MUSCLE TRUCKS AND RODS. FORGED NARROW SUPERLITE CALIPERS, 14" DIAMETER ROTORS, AND HIGH PERFORMANCE WILWOOD BRAKE PADS GENERATE BIG BRAKE STOPPING POWER TO COMPLIMENT WHEEL, TIRE, AND SUSPENSION UPGRADES ON ALL TYPES OF CUSTOM SHOW AND PERFORMANCE STREET/STRIP MACHINES.
INCLUDES THE 2 1/2" DROP RIDETECH SPINDLES. THEY ARE PRECISION-CAST FROM HIGH-QUALITY DUCTILE IRON WITH 4140 CHROMOLY CNC MACHINED PINS
THESE KITS REQUIRE AT LEAST 18" DIAMETER WHEELS.

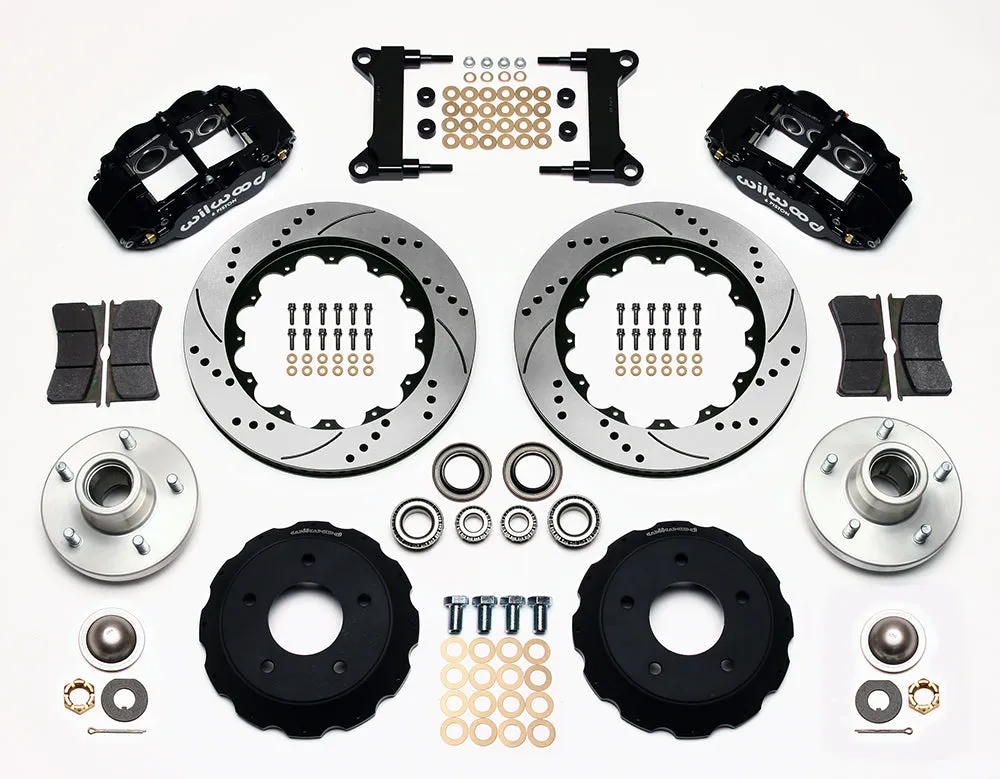

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

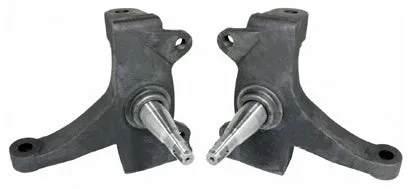

- RIDETECH 2 1/2" DROP SPINDLES
- DRILLED & SLOTTED, 1.25" THICK X 14" O.D. ROTORS
- FORGED NARROW SUPERLITE 6 PISTON CALIPERS - BLACK
- CALIPER MOUNTING BRACKETS
- BP-10 SMART COMPOUND BRAKE PADS
- HATS, HUBS
- ALL BOLTS, WASHERS, AND SHIMS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS
COMPLETE KIT WEIGHS APPROXIMATELY 94 LBS.
YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
